440V line-line，250V line-case
200A
50/60Hz
1000Vdc/2s
25/70/21
| Quantity: | |
|---|---|
1. Technical Data

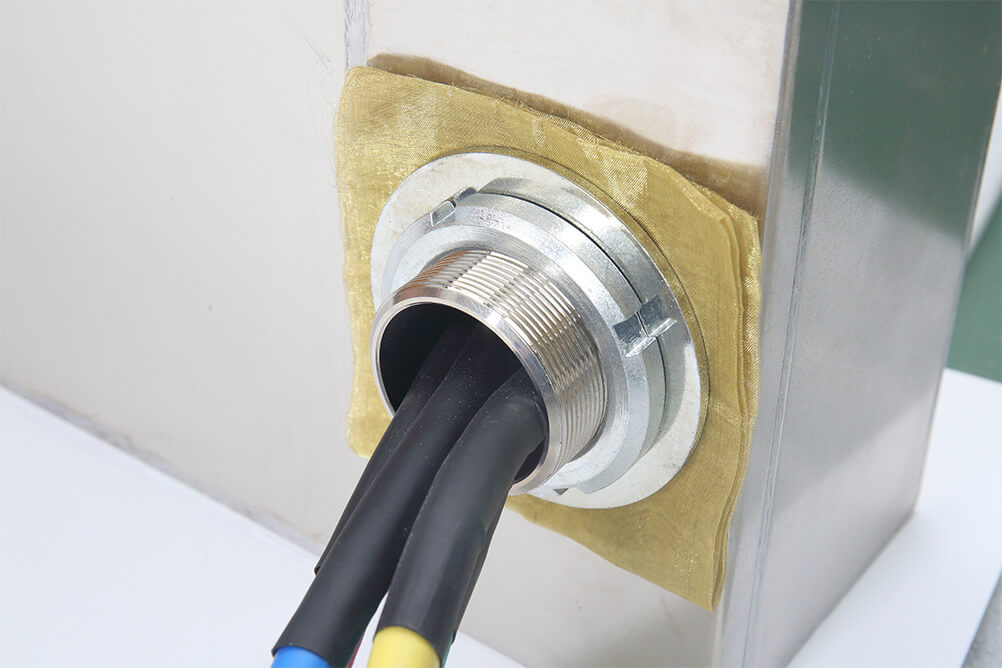

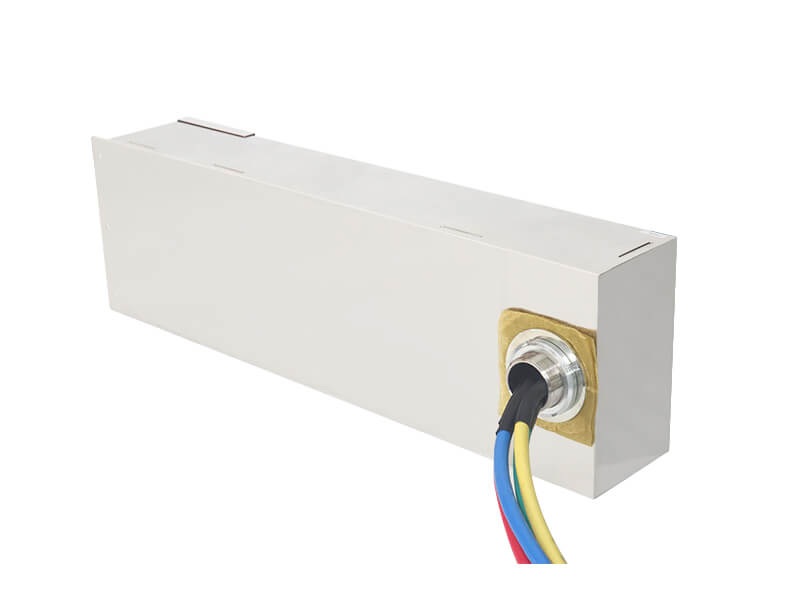

Single phase/3- phase 4-lines power line filters
| Rated Voltage (Single phase) | 250V | line-line / line-case |
| Rated Voltage (3-phase) | 440V | line-line |
| 250V | line-case | |
| Rated Current | see characteristics | referred to +40℃ ambient temperature |
| Rated Frequency | 50/60Hz | |
| Test Voltage | 1000Vdc/2s | line-line |
| 1000Vdc/2s | line-case | |
| Voltage Drop/PhaseΔV | <1% | of VR at 50Hz and IR |
| Leakage Current | see characteristics | at 440V/250V and 50Hz |
| Climatic Category | 25/070/21 |
Characteristics for filter C(Up to 40GHz)
| Type | Rated Current (A) | I Leakage (A) | Dim. | Shielding Efficiency |
| GPF201C-3 | 2×3 | 0.5 | 1 | 100dB, 14K-40GHz |
| GPF201C-6 | 2×6 | |||
| GPF201C-16 | 2×16 | 0.5 | 2 | |
| GPF201C-32 | 2×32 | |||
| GPF201C-50 | 2×50 | 0.5 | 3 | |
| GPF201C-63 | 2×63 | 0.5 | ||
| GPF201C-100 | 2×100 | 1 | ||
| GPF201C-200 | 2×200 | |||
| GPF231C-16 | 2×16 | 0.5 | 4 | |
| GPF231C-32 | 2×32 | |||
| GPF231C-50 | 2×50 | 0.5 | ||
| GPF231C-63 | 2×63 | |||
| GPF231C-100 | 2×100 | 1 | ||
| GPF231C-200 | 2×200 | |||
| GPF401C-16 | 4×16 | 0.5 | 3 | |
| GPF401C-32 | 4×32 | |||
| GPF401C-50 | 4×50 | |||
| GPF401C-63 | 4×63 | |||
| GPF401C-100 | 4×100 | 1 | 5 | |
| GPF401C-200 | 4×200 | |||
| GPF401C-300 | 4×300 | 1 | 6 | |
| GPF401C-400 | 4×400 | 1 | ||
| GPF401C-600 | 4×600 | 1 | ||
| GPF401C-1000 | 4×1000 | 1 | ||
| GPF431C-16 | 4×16 | 0.5 | 7 | |
| GPF431C-32 | 4×32 | |||
| GPF431C-50 | 4×50 | |||
| GPF431C-63 | 4×63 | |||
| GPF431C-100 | 4×100 | 1 | ||
| GPF431C-200 | 4×200 | |||
| GPF431C-250 | 4x250 |
Characteristics for filter A (Up to 40GHz)
| Type | Rated Current (A) | I Leakage (A) | Dim. | Shielding Efficiency |
| GPF201A-16 | 2×16 | 0.2 | 2 | 100dB, 150K-40GHz |
| GPF201A-32 | 2×32 | |||
| GPF201A-63 | 2×63 | |||
| GPF201A-100 | 2×100 | 0.5 | ||
| GPF401A-16 | 4×16 | 0.2 | 3 | |
| GPF401A-32 | 4×32 | |||
| GPF401A-63 | 4×63 | |||
| GPF401A-100 | 4×100 | 0.5 | 5 | |
| GPF401A-200 | 4×200 |
2.Outline Drawing (mm)
| Type | A | B | C | D | E | F | G | H | I | J | Dim. |
| GPF201A-16 | 400 | 150 | 100 | / | / | / | 50 | M33 | / | / | 2 |
| GPF201A-32 | |||||||||||
| GPF201A-63 | |||||||||||
| GPF201A-100 | |||||||||||
| GPF201C-16 | 450 | 150 | 100 | / | / | / | 30 | M24 | / | / | |
| GPF201C-32 | |||||||||||
| GPF201C-50 | 560 | 160 | 110 | 590 | 575 | 100 | 50 | M33 | / | / | 3 |
| GPF201C-63 | |||||||||||
| GPF201C-100 | 760 | 160 | 140 | 800 | 785 | 100 | 50 | M45 | / | / | |
| GPF201C-200 | |||||||||||
| GPF231C-16 | 550 | 160 | 100 | 580 | 565 | 100 | 35 | M24 | M6 | / | 4 |
| GPF231C-32 | |||||||||||
| GPF231C-50 | 650 | 160 | 120 | 680 | 665 | 100 | 50 | M33 | M6 | / | |
| GPF231C-63 | |||||||||||
| GPF231C-100 | 800 | 160 | 140 | 830 | 815 | 100 | 50 | M45 | M8 | / | |
| GPF231C-200 | M12 | / | |||||||||
| GPF401A-16 | 400 | 220 | 100 | 430 | 415 | 150 | 50 | M33 | / | / | 3 |
| GPF401A-32 | |||||||||||
| GPF401A-63 | |||||||||||
| GPF401A-100 | 560 | 250 | 140 | 590 | 575 | 90 | 50 | M45 | / | / | 5 |
| GPF401A-200 | 60 | M60 | |||||||||
| GPF401C-16 | 560 | 220 | 100 | 590 | 575 | 150 | 50 | M33 | / | / | 3 |
| GPF401C-32 | |||||||||||
| GPF401C-50 | |||||||||||
| GPF401C-63 | |||||||||||
| GPF401C-100 | 760 | 250 | 140 | 800 | 785 | 90 | 50 | M45 | / | / | 5 |
| GPF401C-200 | 60 | M60 | |||||||||
| GPF401C-300 | 920 | 400 | 200 | 960 | 945 | 170 | 60 | M45 | 4*25 | 100 | 6 |
| GPF401C-400 | 6*25 | ||||||||||
| GPF401C-600 | 8*25 | ||||||||||
| GPF401C-1000 | 920 | 450 | 200 | 960 | 945 | 185 | 60 | M60 | 8*40 | 106 | |
| GPF431C-16 | 650 | 250 | 120 | 680 | 665 | 100 | 50 | M33 | M6 | / | 7 |
| GPF431C-32 | |||||||||||
| GPF431C-50 | |||||||||||
| GPF431C-63 | |||||||||||
| GPF431C-100 | 800 | 250 | 140 | 830 | 815 | 100 | 50 | M45 | M8 | / | |
| GPF431C-200 | 60 | M60 | M12 | / | |||||||
| GPF431C-250 |
Fig 1
Fig 2
Fig 3
Fig 4
Fig 5
Fig 6
Fig 7
Note: When the current is above 250A, the input and output ends are bus bar of copper
