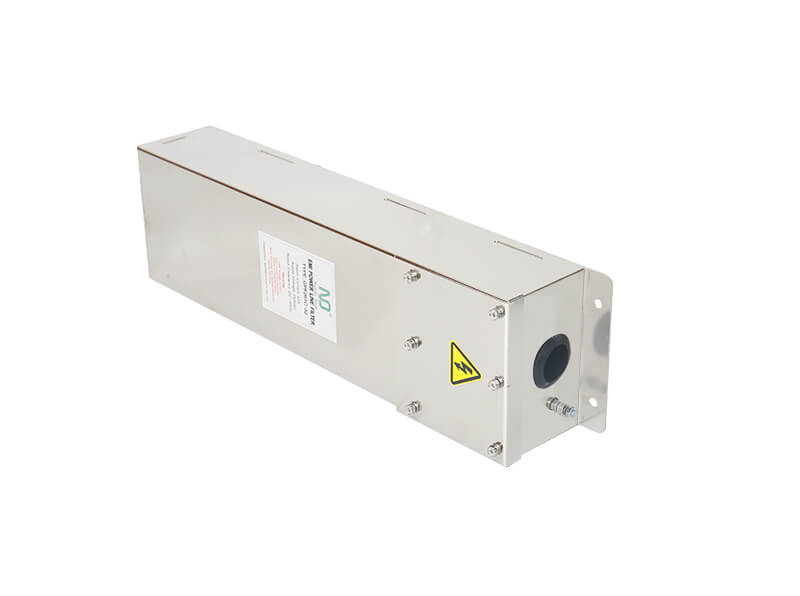

0-500VDC
63A
1200Vdc/2s
25/085/21
| Quantity: | |
|---|---|
1.Technical Data
| Rated Voltage | 0-500V | |
| Rated Current | Refer to product range table | Ambient temperature of +40℃ |
| Number of lines | 2 | |
| Insertion Loss, Per MIL-STD-220C | ＞100dB | 14kHz-40GHz |
| DC Resistance | Refer to product range table | Each Line |
| Power Dissipation | Refer to product range table | At Rated Current |
| Test Voltage | 1200Vdc,2s | Line/Line |
| 1200Vdc,2s | Line/Ground | |
| Voltage Drop/line | ＜1% | 250/440V@50/60Hz |
| I Leakage | Refer to product range table | |
| Discharge Time to Below 34V | 30s | |
| Climatic Category(EN 60068-1) | 25/085/21 | -25℃~+85℃ 21 days damp heat test |
Discharging Resistance Integrated
The discharge resistance is integrated into the filter in order to discharge the capacitance after turning off the power.
2. Product Range
| Type | Rated Current (A) | Rated Voltage (VDC) | Number of lines | DC resistance of each line (mΩ) | Power Dissipation (W) | Terminal | |
| Input | Output | ||||||
| GDF232C-16 | 16 | 0-500 | 2 | ＜50 | ＜30 | M6 | 4mm2 BVR |
| GDF232C-32 | 32 | ＜20 | ＜40 | M6 | 6mm2 BVR | ||
| GDF232C-63 | 63 | ＜6.0 | ＜70 | M6 | 10mm2 BVR | ||
| GDF232C-100 | 100 | ＜3.5 | ＜100 | M8 | 35mm2 BVR | ||
| GDF232C-150 | 150 | ＜2.0 | ＜150 | M12 | 50mm2 BVR | ||
| GDF232C-200 | 200 | ＜2.0 | ＜200 | M12 | 70mm2 BVR | ||
3.Dimensions(mm)
| Type | A | B | C | D | E | F | G | H | Dim. |
| GDF232C-16 | 550 | 160 | 100 | 580 | 565 | 100 | 35 | M24 | Fig1 |
| GDF232C-32 | 550 | 160 | 100 | 580 | 565 | 100 | 35 | M24 | |
| GDF232C-63 | 800 | 160 | 140 | 830 | 815 | 100 | 50 | M45 | |
| GDF232C-100 | 860 | 250 | 180 | 900 | 885 | 100 | 60 | M45 | Fig2 |
| GDF232C-150 | 860 | 300 | 210 | 900 | 885 | 120 | 60 | M45 | |
| GDF232C-200 | 860 | 300 | 210 | 900 | 885 | 120 | 60 | M45 |
4. Circuit Diagrams
|
5. Insertion Loss：
| Frequency of 14kHz-40GHz, Insertion loss over 100dB | |
 | |
| Single-stage filter | Three-stage filter |
6. Outline Drawing：
 |  |
| Fig1 | Fig2 |
