250VAC
3A
50/60Hz
1500VDC line/line，2250VDC Line/Ground
25/085/21
CE UL
| Quantity: | |
|---|---|
Instruction
1) Rated current up to 1000A
2) General purpose filtering performance compared to cost making
3) Different output connections
4) Approval: CE UL
Features
1) General purpose, compact single phase filter with embedded /nut/ copper row wire connections
2) General purpose, compact, easy for installation, cost saving to performance
Application
1) Available for electronic equipments and measuring instruments
2) White goods, single phase industrial equipments, power supply and control systems.
3) Available for single-phase power supply, switch-mode power supply, PLC controller
4) Medical equipments and medical typical applications (Low current leakage)
1.Product Range
| Type | Rated Current (A) | Rated Voltage | Rated Frequency | I Leakage (≤mA) | Test Voltage (2s) | Dim. | Circuit | Output | Climate Category |
| ND2104A-1 | 1 | 125/250VAC | 50/60Hz | 0.5 250VAC/50Hz | Line/Line 1500VDC Line/ Ground 2250VDC | Fig1 | Fig1 | | 25/85/21 |

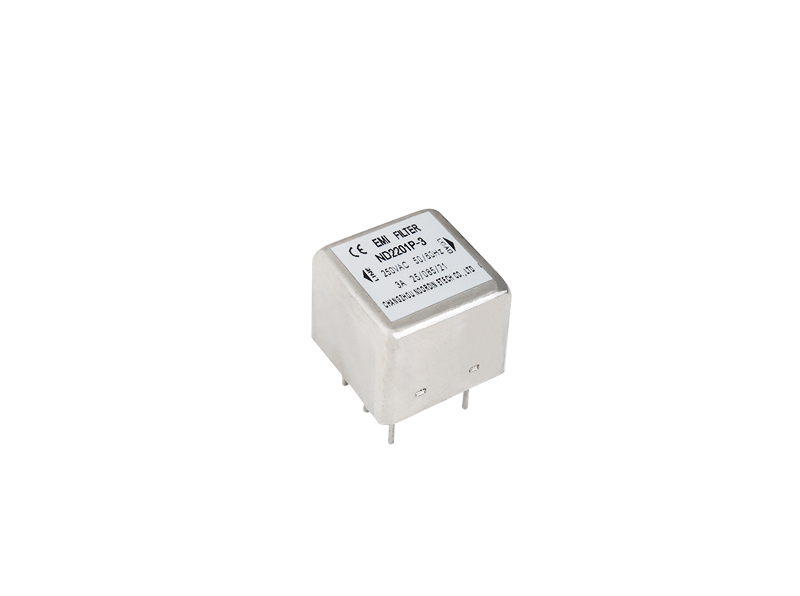

| ND2201P-3 | 3 | Fig2 | | ||||||
| ND2104A-3 | 3 | Fig1 | | ||||||
| ND2104A-6 | 6 | ||||||||
| ND2205A-10 | 10 | Fig3 | Fig2 | ||||||
ND2207H-20 | 20 | Fig5 | | ||||||
| ND2207H-30 | 30 | ||||||||
| ND2101T-30 | 30 | Fig4 | | ||||||
| ND2209G-50 | 50 | Fig6 | | ||||||
| ND2210G-100 | 100 | Fig7 | |||||||
| ND2211H-200 | 200 | Fig8 | |||||||
| ND2210C-300 | 300 | Fig9 | 4*25 | ||||||
| ND2210C-400 | 400 | 4*25 | |||||||
| ND2210C-600 | 600 | 4*25 | |||||||
| ND2210C-800 | 800 | Fig10 | | ||||||
| ND2210C-1000 | 1000 |
2.Circuit Diagrams
3.Outline Drawing（mm）
4.Insertion Loss
Insertion loss measured in 50Ω/50Ω system,as IEC/CISPR No.17
A=Differential mode B=Common Mode
